The tensor

What is a tensor?

A  tensor is one structure which is needed and used from many AI environments.
Basically the tensor is a kind of a 4 dimensional matrix, containing parameters for
dimensions and data itself. The 'data' has the information used  from the environment,
this information may be color of a pixel, velocity of a motor, position of some object.
Generally it is one or more junks of bytes. The order of this data contained in the tensor
usually is a structure described through some matrices and vectors.

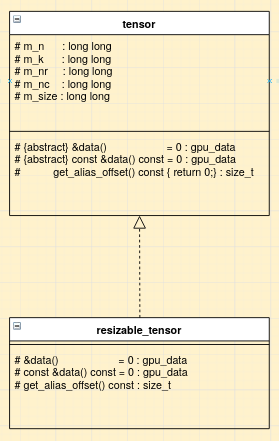

From the software point of view, I am using tensor in my AI developments as a class
described below

n is the number of samples. This is the size of the

vector containing  the base data. For example, the

base data is one picture, usually denoted by one array

of 3, 4 pixel information (r, g, b, a). Sometimes named

    as ‘channels’. Form the software point of view defined

    as std::vector<Array of data..>

k is describing the number of the filters. Filters are

    quadratic groups of data within one array of data.

    For example one filter may be a quadratic small array

    of our pixels (3x3), (4x4), (30x30),(...)

nr is the number of rows contained in only one array of

    data, For examples 30 rows are there.

nc is the number of columns containing the data

size is the total size of the Tensor. It may be calculated

as the following product:

size = n x nr x nc

For example n= 2, nr = 3, nc = 4 => size = 24
